Install NVIDIA GT610m Aka Optimus Di Ubuntu 14.04

| Comments

Pada kesempatan ini saya akan men-share cara install Nvidia Optimus pada ubuntu. Khusus untuk ubuntu prosesnya gak ribet ribet amat. cuma tinggal tambahin repo trus apt-get install :p

tambahkan repo universe dan multiverse

Universe & Multiverse
1
2
3
4
5
6
7
8
9
sudo add-apt-repository "deb http://archive.ubuntu.com/ubuntu $(lsb_release -sc) main universe restricted multiverse"

sudo add-apt-repository "deb http://archive.ubuntu.com/ubuntu $(lsb_release -sc) universe"

sudo add-apt-repository "deb http://archive.ubuntu.com/ubuntu $(lsb_release -sc) universe"

sudo add-apt-repository "deb http://archive.ubuntu.com/ubuntu $(lsb_release -sc) main universe restricted multiverse"

sudo add-apt-repository "deb http://archive.canonical.com/ubuntu $(lsb_release -sc) partner"

Lalu update reponya dan install bumblebee nya serta reboot.

Terminal
1
2
3
4
5
6
7
sudo apt-get update

sudo apt-get install mesa-utils

sudo apt-get install bumblebee bumblebee-nvidia primus linux-headers-generic

reboot

Kalau sudah di install coba akses GPU secondary nya.

1
optirun bash

kalau terjadi error

[ERROR]Cannot access secondary GPU - error: [XORG] (EE) NVIDIA(0): Failed to initialize the NVIDIA GPU at PCI:1:0:0. Please[ERROR]Aborting because fallback start is disabled

lakukan beberapa langkah dibawah ini.

1
sudo apt-get install nvidia-331-updates

edit skrip konfigurasi bumblebee sudo gedit /etc/bumblebee/bumblebee.conf

ganti konfigurasinya menggunakan skrip dibawah, sebelumnya backup dahulu skrip konfigurasi defaultnya. untuk jaga-jaga

Konfigurasi Bumblebee
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
# Configuration file for Bumblebee. Values should **not** be put between quotes

## Server options. Any change made in this section will need a server restart
# to take effect.
[bumblebeed]
# The secondary Xorg server DISPLAY number
VirtualDisplay=:8
# Should the unused Xorg server be kept running? Set this to true if waiting
# for X to be ready is too long and don't need power management at all.
KeepUnusedXServer=false
# The name of the Bumbleblee server group name (GID name)
ServerGroup=bumblebee
# Card power state at exit. Set to false if the card shoud be ON when Bumblebee
# server exits.
TurnCardOffAtExit=false
# The default behavior of '-f' option on optirun. If set to "true", '-f' will
# be ignored.
NoEcoModeOverride=false
# The Driver used by Bumblebee server. If this value is not set (or empty),
# auto-detection is performed. The available drivers are nvidia and nouveau
# (See also the driver-specific sections below)
Driver=nvidia
# Directory with a dummy config file to pass as a -configdir to secondary X
XorgConfDir=/etc/bumblebee/xorg.conf.d

## Client options. Will take effect on the next optirun executed.
[optirun]
# Acceleration/ rendering bridge, possible values are auto, virtualgl and
# primus.
Bridge=auto
# The method used for VirtualGL to transport frames between X servers.
# Possible values are proxy, jpeg, rgb, xv and yuv.
VGLTransport=proxy
# List of paths which are searched for the primus libGL.so.1 when using
# the primus bridge
PrimusLibraryPath=/usr/lib/x86_64-linux-gnu/primus:/usr/lib/i386-linux-gnu/primus
# Should the program run under optirun even if Bumblebee server or nvidia card
# is not available?
AllowFallbackToIGC=false


# Driver-specific settings are grouped under [driver-NAME]. The sections are
# parsed if the Driver setting in [bumblebeed] is set to NAME (or if auto-
# detection resolves to NAME).
# PMMethod: method to use for saving power by disabling the nvidia card, valid
# values are: auto - automatically detect which PM method to use
#         bbswitch - new in BB 3, recommended if available
#       switcheroo - vga_switcheroo method, use at your own risk
#             none - disable PM completely
# https://github.com/Bumblebee-Project/Bumblebee/wiki/Comparison-of-PM-methods

## Section with nvidia driver specific options, only parsed if Driver=nvidia
[driver-nvidia]
# Module name to load, defaults to Driver if empty or unset
KernelDriver=nvidia-331-updates
PMMethod=auto
# colon-separated path to the nvidia libraries
LibraryPath=/usr/lib/nvidia-331-updates:/usr/lib32/nvidia-331-updates
# comma-separated path of the directory containing nvidia_drv.so and the
# default Xorg modules path
XorgModulePath=/usr/lib/nvidia-331-updates/xorg,/usr/lib/xorg/modules
XorgConfFile=/etc/bumblebee/xorg.conf.nvidia


## Section with nouveau driver specific options, only parsed if Driver=nouveau
[driver-nouveau]
KernelDriver=nouveau
PMMethod=auto
XorgConfFile=/etc/bumblebee/xorg.conf.nouveau

save lalu reboot.

setelah reboot cek kembali apakah GPU secondary nya sudah bisa diakses.

Cek
1
optirun bash

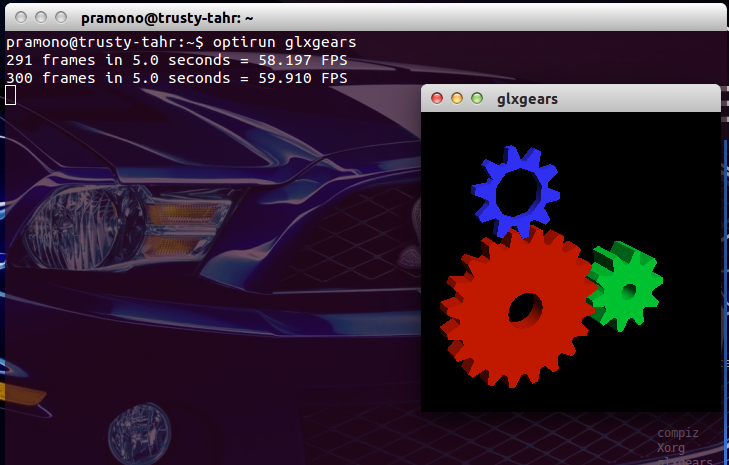

Cek Glxgears
1
optirun glxgears

Cek opengl
1
glxinfo | grep "OpenGL"
